Navigation and Circulation: Vertical Circulation

Elevator Cabin Design

To ensure accessibility for all users, elevators should be designed with spacious cabins and features that accommodate individuals with mobility impairments. This includes providing enough space for a wheelchair user and an accompanying person, as well as ensuring clear and comfortable access to the elevator. Key aspects include appropriate handrails, non-slip flooring, and the inclusion of additional support features like foldable benches. The design of the cabin should also prioritize easy-to-use buttons and clear tactile indicators for individuals with visual impairments.

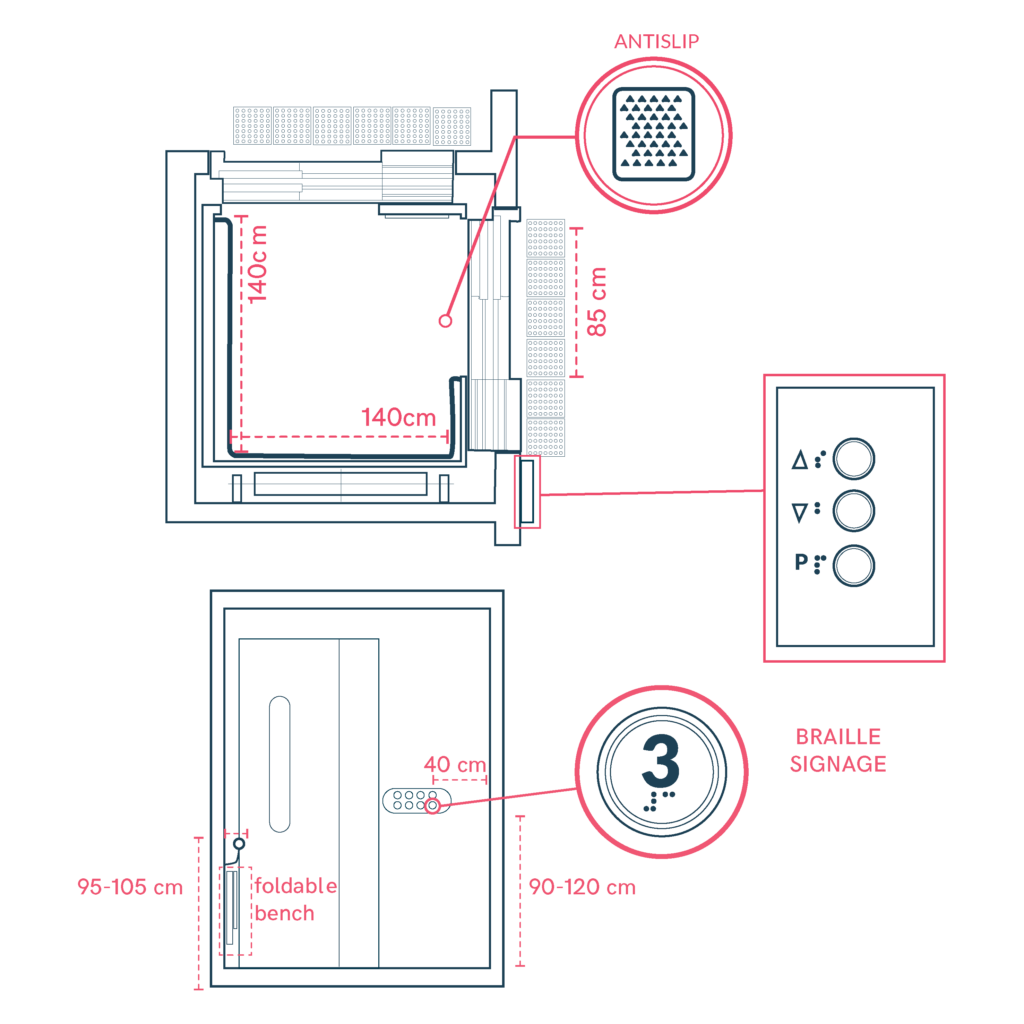

  • Ensure the interior dimensions allow space for a wheelchair user and a companion to comfortably fit.
  • Install handrails inside the cabin at a height of 95-105 cm, ensuring they are easy to grasp and placed 45-55 mm away from the wall. The handrail should have a circular diameter of 40-50 mm for optimal comfort and ease of use.
  • Choose flooring materials that are non-slip both when wet and dry, reducing the risk of slips and falls.
  • Consider adding a foldable bench or lumbar support to enhance comfort for users with additional mobility needs.
  • Buttons should be raised to at least 2 cm in height and feature Braille signage for those with visual impairments. The button panel should be between 90-120 cm high and 40 cm away from the cabin corners.
  • Ensure tactile indicators are placed on the elevator panels to assist visually impaired users in identifying key features, such as floor buttons.
